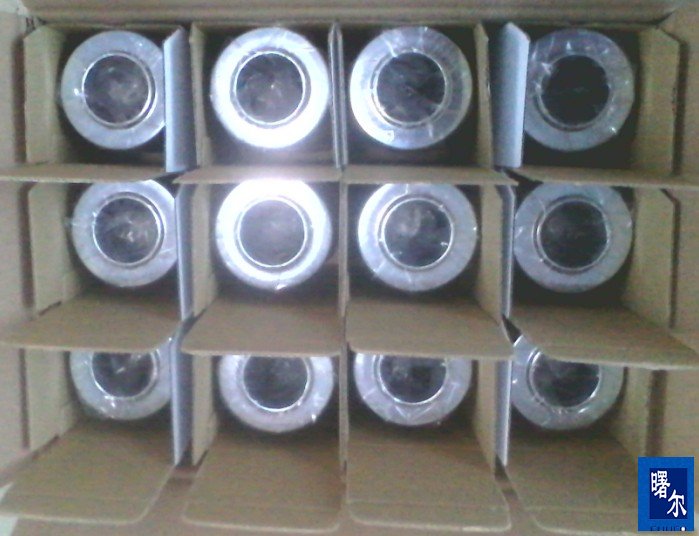

Pi3215mahle768.040.8玛勒滤芯

F.安装新的或清洁元件

Cartridge

墨盒

1. Lubricate all seals.

1。所有密封件的润滑。

2. Mount new or cleaned Parker

2。安装新的或清洗帕克

fi lter cartridge.

滤波器盒。

NOTE: For ease of mounting, hold the

注：为方便安装，持有

cartridge away from the magnetic core

墨盒远离磁芯

until the stud is through the hole in

直到螺柱通过孔

the bottom of the element. Then slide

元素的底部。然后滑

it up to securely seat it to the top of

它的安全座椅到顶部

the bridge.

桥。

3. Install the bypass spring

3。安装旁路弹簧

assembly or nonbypass

装配或nonbypass

plate, and tighten until

板上，并拧紧至

snug.

舒适的。

NOTE: Older versions may have a

注：旧版本可能有

cotter pin/castellated nut retained

开尾销/槽螺母保留

bypass spring. In these cases, the nut

旁路弹簧。在这些情况下，螺母

should be turned down the shaft until

应该把轴直到

the cross drilled hole is visible in the

交叉钻孔中可见

base of a castellation and the cotter

一种齿形和扁基地

pin inserted and ends fl ared to lock

销插入端FL ARED锁

the bypass assembly in place.

在旁路组件。

4. Re-install the insert into the

4。重新安装插入

fi lter housing, making sure that

滤波器外壳，确保

the top- spring is secure.

顶部的弹簧是安全的。

5. Re-install the cover. Torque the

5。重新安装盖。扭矩

cover nuts to 22 ft./lbs.

盖螺母到22英尺/磅。

Follow procedures B.1 and B.2.

遵循程序1和B。

77689078 Pi8530Drg100玛勒滤芯 Drg 100 4280
77668510 Pi8630Drg200玛勒滤芯 Drg 200 2975
77718786 Pi8730Drg300玛勒滤芯 Drg 300 2975
77718794 Pi8830Drg500玛勒滤芯 Drg 500
